[#DTG 평판프린터의 한계 무너트리기 #1 / BREAKING DTG Boundaries #1]



By Brian Walker, Contributing Writer

 [#그림티셔츠 DTG 평판프린터 코닛프린팅 지원센터 박기성 의역.]









눈길을 끄는 디자인으로 새로운 고객을 유치 할 수 있는 3 가지 새로운 DTG 프린팅 방법은 다음과 같습니다.

Here’s how to perform three unconventional prints that could result in eye-catching designs and new customers.

필름과 스크린의 부족, 엉망이된 프레스 위의 잉크를 대하며 일해야 하는 나염인쇄와 비교하여 Direct-to-garment (DTG) 인쇄는 많은 이점을 제공합니다.

디지털 데코레이터는 원하는 만큼의 색상을 디자인에 표현할 수 있으며 모든 고객의 요구 사항에 맞춰 단 하나의 티셔츠에도 풀 컬러로 인쇄 할 수 있습니다.

티셔츠를 단지 프린터 옷판에 넣기만 하면 프린팅이 되게 할 수 있습니다. 대부분의 DTG 사용자는 간단한 앞면 또는 뒷면 인쇄가 필요한 주문을 받습니다. 그러나 새로운 고객에게 문을 열어 DTG 사용자의 창조적인 발휘가 훨씬 더 가능한 일을 할 수 있습니다. 틀에 박힌 위치와 이미지 크기를 탈피하여 인쇄한다면 인쇄의 즐거움을 새롭게 누릴 수 있습니다.

Direct-to-garment (DTG) printing offers numerous benefits, including lack of films, screens and on-press ink mess.

Digital decorators can have as many colors as they prefer in a design, yet only print one shirt in full color if that’s all the customer needs. This makes printing simple and straightforward just load the shirt and print.

Most DTG users receive orders that require simple front or back prints. But so much more can be done to open doors to new customers while unleashing a decorator’s inner creative artist.

Printing unconventional locations and image sizes can rekindle the fun of printing.



[커다란 크기의 프린팅 / OVERSIZED PRINTS]

대부분의 DTG 프린터는 30cm x 40cm 또는 이보다는 약간 작게 설정된 옷판  크기를 사용하고 있습니다. 그래서 인쇄 할 수 있는 이미지의 크기가 옷판 크기에 맞추어 제한됩니다. 물론 일부 평판프린터에는 소매, 아동용 티셔츠, 대형 인쇄물까지도 넣을 수 있는 교환용 특수 옷판도 준비되어 있습니다. 그러나 추가의 비용을 들이지 않고도 독특한 위치와 큰 크기의 이미지를 프린팅 할 수 있는 방법이 있습니다.

앞서 언급한 표준 옷판 크기를 사용하여 너비가 40cm 이상이지만 높이가 30cm 이내인 디자인을 인쇄한다고 가정해 봅시다. 이미지의 너비를 감안할 때 정상적 방법으로는 로딩 및 프린팅이 되지 않을 것입니다. 다음 단계는 기존 옷판에 변형된 로딩을 사용하여 인쇄하는 방법의 예입니다.

Most DTG printers have a set platen size, such as 30cm x 40cm or slightly smaller. This limits the size of the graphic that can be printed. Some printers have interchangeable special platens for embellishing sleeves, youth shirts, pockets,   even achieving oversized prints. However, there are ways to print unique locations and bigger sizes without spending extra money.

Using the aforementioned standard platen dimensions, let’s say you want to print a design that is at least 40cm wide, but still within 30cm tall. Given the image’s width, standard loading and printing will not work. The following steps are an example of how you can use a conventional platen and unconventional loading to print a design:

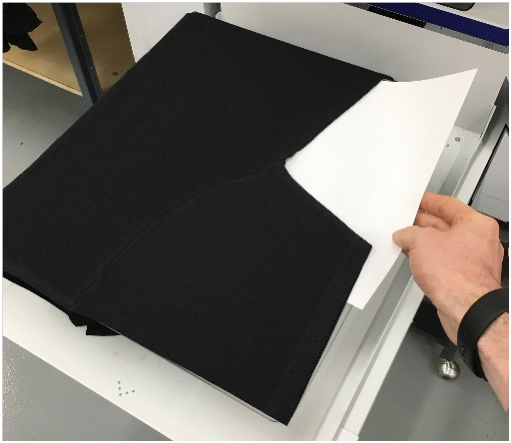

Step 1: 정상보다 큰 디자인을 프린팅 하려면 티셔츠를 옷판 옆으로 돌려 놓으십시오.

To accommodate a larger-than-normal design, try loading the shirt sideways onto the platen.



Step 2: RIP 또는 프린트 드라이버에서 이미지가 티셔츠가 로드된 방향으로 되어 있는지 확인하십시오. 티셔츠는 왼쪽에 목 카라가 적재되고 시계 방향으로 90도 회전되었습니다. 소프트웨어에 표시된 이미지가 티셔츠 배치와 일치하는지 확인하십시오.

In your RIP or print driver, ensure the image correlates to how the shirt is loaded. In this case, the shirt was loaded with the collar on the left side and rotated 90 degrees clockwise. Ensure that the image shown in the software corresponds to the shirt placement.



Step 3: 프린팅 후 티셔츠는 정상적으로 후처리(건조) 할 수 있습니다. 대부분의 열 프레스는 40cm x 50cm이기 때문에 프린터에서와 똑같이 티셔츠를 가로로 넣어야 할 수도 있습니다.

After printing, the design can be cured as normal. Because most heat presses are 40cm x 50cm, you may need to load the shirt sideways onto the heating platen just as you did on the printer to ensure a proper cure.



[더 크게 만들기 / GOING BIGGER]

60cm 높이 x 30cm 너비의 디자인을 가지고 있다면 어떻게 될까요? 일부 DTG 프린터는 대형 옷판을 허용하지만 대부분은 표준 크기보다 더 작은 인쇄 영역만을 프린팅 할 수 있습니다. 그러면 한 번에 전체 이미지를 인쇄 할 수 없으므로 어떻게 그러한 인쇄물을 얻을 수 있습니까? 먼저 인쇄 할 두 개의 이미지로 이러한 디자인을 분리 할 수 ​​없으므로 큰 이미지 하나로 작업하지 않도록 하십시오. 다음 단계는 훨씬 더 큰 디자인을 인쇄 할 때 도움이 될 수 있습니다.

What happens if you have a design that measures 60cm high x 30cm wide? Some DTG printers allow for large platens, but most have a smaller, standard-size print area. This means you can’t print the entire image at once, so how can you achieve such a print?

First, ensure you’re not working with one big, solid image, as you can’t break such a design into two separate images to be printed. Because fabric is not rigid and will stretch, no amount of adjustment will result in perfect alignment. The following steps can be helpful when printing much larger designs:



Step 1: 아트웍을 직소퍼즐처럼 분리하여 프린팅 하여도 한 그림처럼 보이도록 디자인 하십시오. 각각의 이미지 사이에 충분한 여유가 있어서 각각이 겹치지 않도록 위치 지정이 필요합니다. 표준 옷판에 티셔츠를 옆으로 놓고, 디자인의 첫 번째 부분을 인쇄하고 후처리 하십시오.

디자인의 두 번째 부분에서는 인쇄 드라이버에서 정확한 아트웍 배치를 확인 하십시오. 예를 들어서 티셔츠의 "바닥"에 위치하여 높이가 약 30cm이므로 셔츠의 밑단 선이 티셔츠 정중앙에 위치됩니다. 이렇게 하면 첫 번째 인쇄물이 보이게 되고 "퍼즐 조각"이 맞는지 측정 할 수 있습니다.

Design the artwork so that it can be printed in separate panels but will fit together like a jigsaw puzzle. Ensure components don’t overlap, while giving enough leeway so that it doesn’t require pinpoint positioning. Load the shirt sideways on a standard platen, print the first part of the design and cure accordingly.

For the second portion of the design, ensure correct artwork positioning in the print driver. In this example, since it is positioned at the “bottom” of the shirt and measures about 30cm high, the shirt’s hem line hangs off of the shirt platen. This keeps the first print in sight and enables measurement to ensure the “puzzle pieces” fit.







Step 2: 마지막 디자인은 셔츠 전면 전체를 둘러 쌌습니다. 이러한 디자인은 인쇄에 더 많은 시간, 노력 및 잉크가 필요하기 때문에 프리미엄 가격을 책정 할 수 있습니다.

The Final “URBANA GRIFFINS” design encompassed 포괄되는 the entire front of shirt. Such a design can command a premium price because it requires more time, effort and ink to print.







Brian Walker has been active in the apparel-decorating business since the mid-1980s and has owned a screen-printing business, developed quoting and pricing software, and also launched a successful online DTG equipment and supplies business. He currently is involved with i-Group Technologies, makers of Viper pretreatment machines; Image Armor inks and pretreatments; and is founder of RTP Apparel, which supplies pretreated shirts for the DTG printing industry. For more information or to comment on this article, email Brian at brian@igrouptech.com.

I M P R E S S I O N S M A G . C O M   AUGUST 2017



[상기 내용은 그림티셔츠 DTG 평판프린터 코닛프린팅 지원센터 박기성 이사가 실정에 맞추어 의역한 것입니다.]
